NVIDIA Jetson Modules

  • Jetson TX2i Module
  • Jetson TX2i Module
Jetson TX2i ModuleJetson TX2i Module

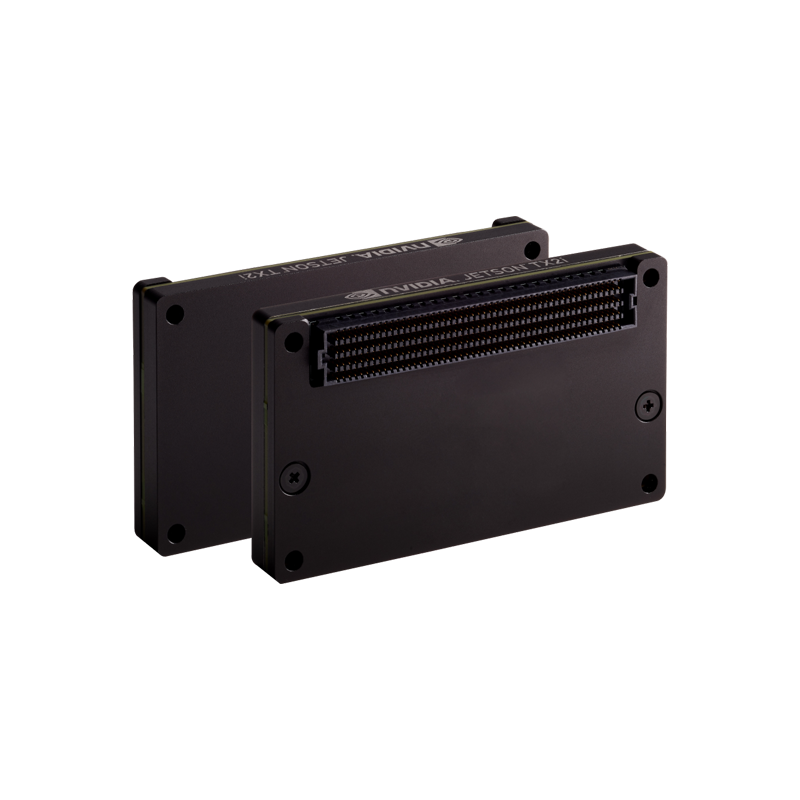

Jetson TX2i Module

The rugged design, small form factor and lower power consumption of the Jetson TX2i modules make them ideal for high-performance edge computing devices such as industrial robots, machine vision cameras, and portable medical devices.

NVIDIA® Jetson™ TX2 series modules give you exceptional speed and power-efficiency in an embedded AI computing device. Each supercomputer-on-a-module brings true AI computing to the edge with an NVIDIA Pascal™ GPU, up to 8 GB of memory and 59.7 GB/s of memory bandwidth, and a wide range of standard hardware interfaces.

A JETSON TX2 FOR ANY APPLICATION
The extended Jetson TX2 family of embedded modules provides up to 2.5X the performance of Jetson Nano in as little as 7.5 W. Jetson TX2 NX offers pin and form-factor compatibility with Jetson Nano, while Jetson TX2, TX2 4GB, and TX2i all share the original Jetson TX2 form-factor. The rugged Jetson TX2i is ideal for settings including industrial robots and medical equipment.

Compare Modules

TX2 NX

TX2 4G

TX2

TX2i

AI Performance

1.33 TFLOPS

1.26 TFLOPS

GPU

256-core NVIDIA Pascal™ GPU

CPU

Dual-core Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor

Memory

4 GB 128-bit LPDDR4
51.2GB/s

8 GB 128-bit LPDDR4
59.7GB/s

8 GB 128-bit LPDDR4
(ECC Support)
51.2GB/s

Storage

16 GB eMMC 5.1

32 GB eMMC 5.1

32 GB eMMC 5.1

Power

7.5W | 15W

10W | 20W

PCIe

1 x1 + 1 x2 (PCIe Gen2)

1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2)

CSI Camera

Up to 5 cameras
(12 via virtual channels)
12 lanes MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)

Up to 6 cameras
(12 via virtual channels)
12 lanes MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)

Video Encode

1x 4K60 (H.265) | 3x 4K30 (H.265) | 4x 1080p60 (H.265)

Video Decode

2x 4K60 (H.265) | 7x 1080p60 (H.265) | 14x 1080p30 (H.265)

Display

2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
1x 2 DSI (1.5Gbps/lane)

2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
2 x4 DSI (1.5Gbps/lane)

Networking

10/100/1000 BASE-T Ethernet

10/100/1000 BASE-T Ethernet, WLAN

10/100/1000 BASE-T Ethernet

Mechanical

69.6 mm x 45 mm
260-pin SO-DIMM connector

87 mm x 50 mm
400-pin connector
