Professional Graphics Card

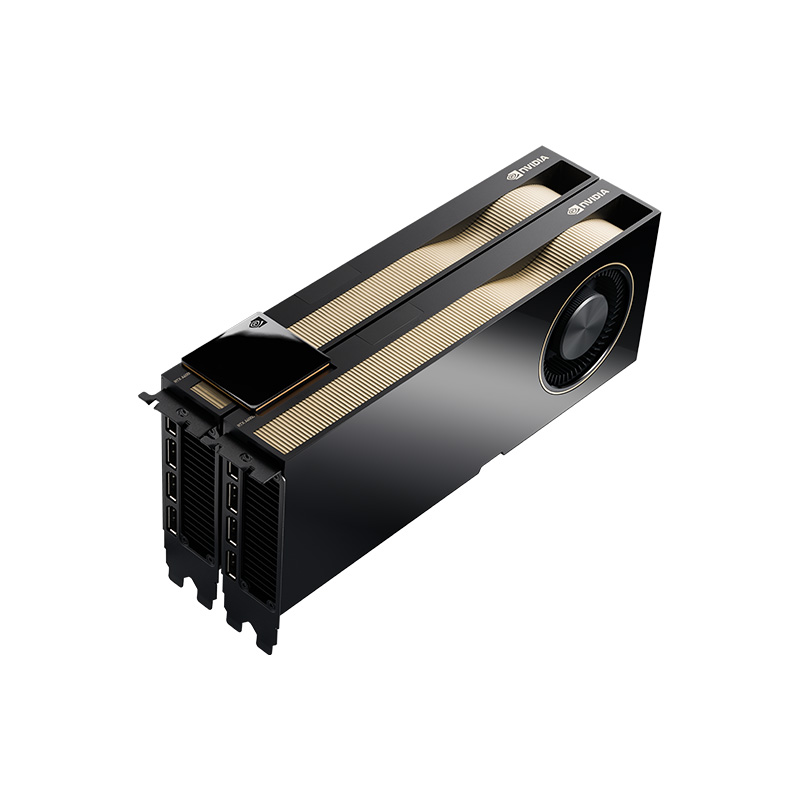

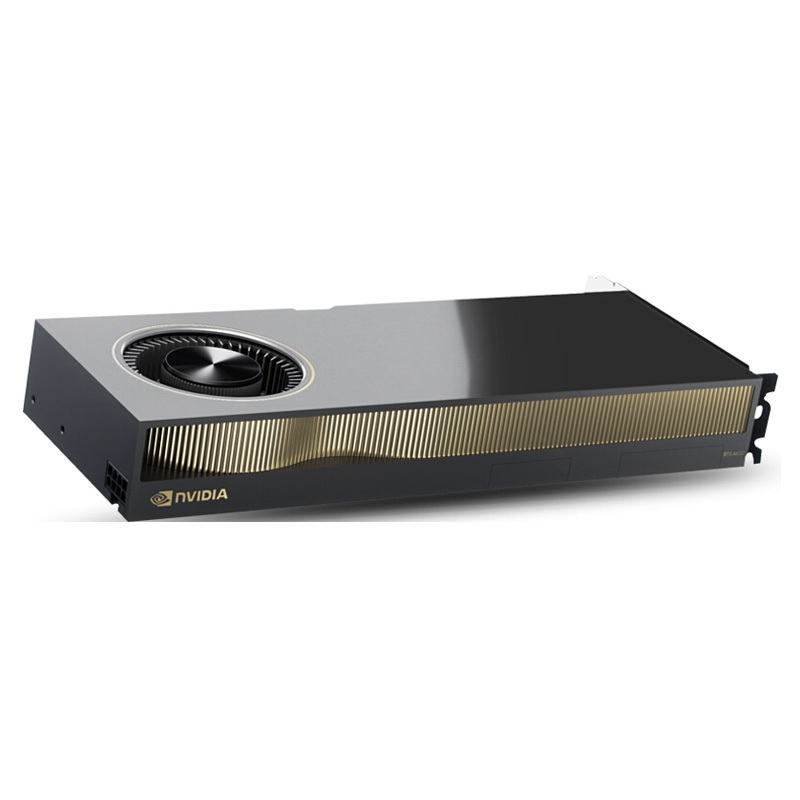

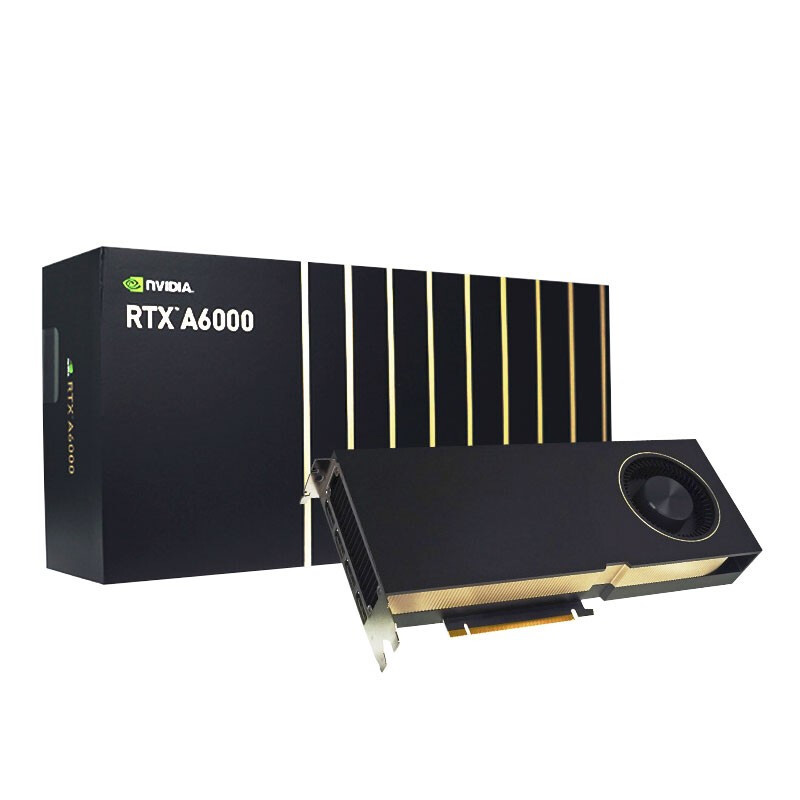

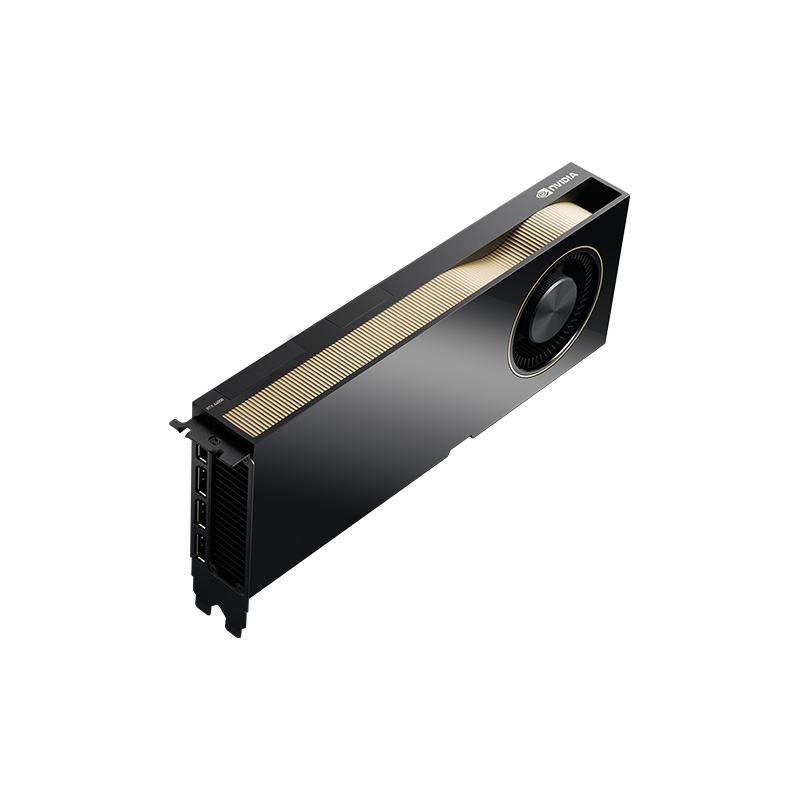

NVIDIA RTX A6000

Ampere GPU
10,752 NVIDIA® CUDA® Cores
336 NVIDIA® Tensor Cores
84 NVIDIA® RT Cores
48GB GDDR6 Memory with ECC

GPU Architecture	Ampere
CUDA Parallel Processing cores	10,752
NVIDIA Tensor Cores	336
NVIDIA RT Cores	84
GPU Memory	48 GB GDDR6 with ECC
Single-Precision Performance1	38.7 TFLOPS
RT Core Performance1	75.6 TFLOPS
Tensor Performance1	309.7 TFLOPS2
Memory Interface	384-bit
Memory Bandwidth	768 GB/s
Power Consumption	300 W
Graphics Bus	PCI Express 4.0 x16
Display Connectors	DP 1.4 (4)3
Form Factor	4.4" H x 10.5" L Dual Slot
Product Weight	1.179 kg
Thermal Solution	Active
Power Connector	1x 8-pin CPU
vGPU Software Support4	NVIDIA® GRID®, NVIDIA Quadro® Virtual Data Center Workstation, NVIDIA Virtual Compute Server
vGPU Profiles Supported	1 GB, 2 GB, 3 GB, 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB, 48 GB
Frame lock	Compatible (with Quadro Sync II)
NVLink Interconnect	112.5 GB/s (bidirectional)
NVENC \| NVDEC	1x \| 2x (+AV1 decode)

1 Peak rates are based on GPU boost clock.
2 Effective TOPS/TFLOPS using the new sparsity feature.
3 Display ports are on by default for the RTX A6000. Display ports are not active when using vGPU software.
4 Virtualization support for the RTX A6000 GPU will be available in an upcoming NVIDIA virtual GPU (vGPU) release.
