101F1E5

AI Performance: 20/8 TOPS INT8

Memory & Storage: 12/8/4GB LPDDR4X, ECC Supported

Display Interface: 1 × HDMI

Rich I/O Interfaces:5 × RJ45, 2 × USB3.0 Type-A, 1 × USB3.0 Type-C, 1 × Micro SD

Expansion Slots: Built-in miniPCIe, M.2 E-Key 2230, M.2 M-Key 2242, M.2 B-Key 3050, Nano SIM and SATA power interface

Operating Temperature: -25℃ ~ +65℃

Input Voltage: DC 9V ~ 36V

Overview

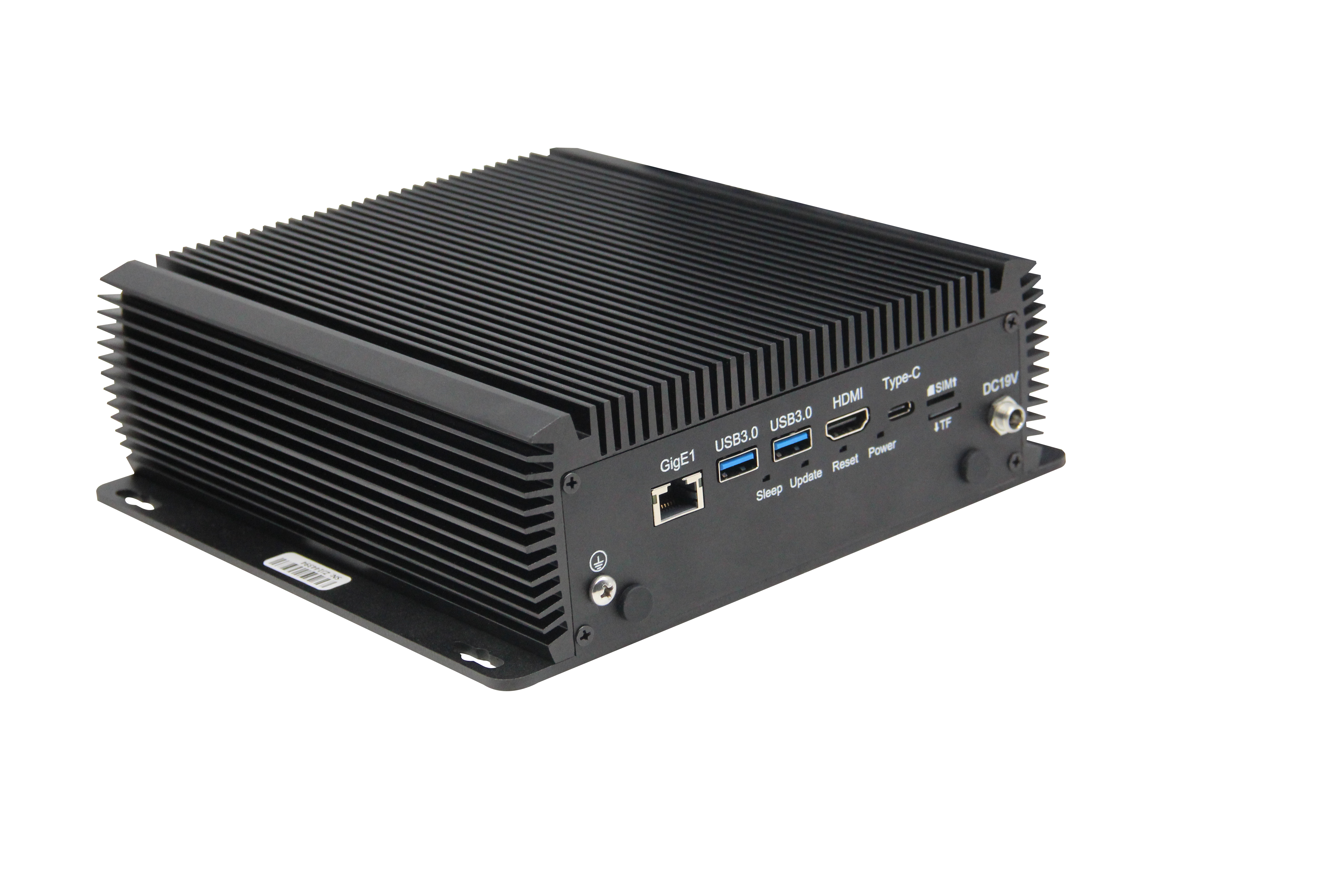

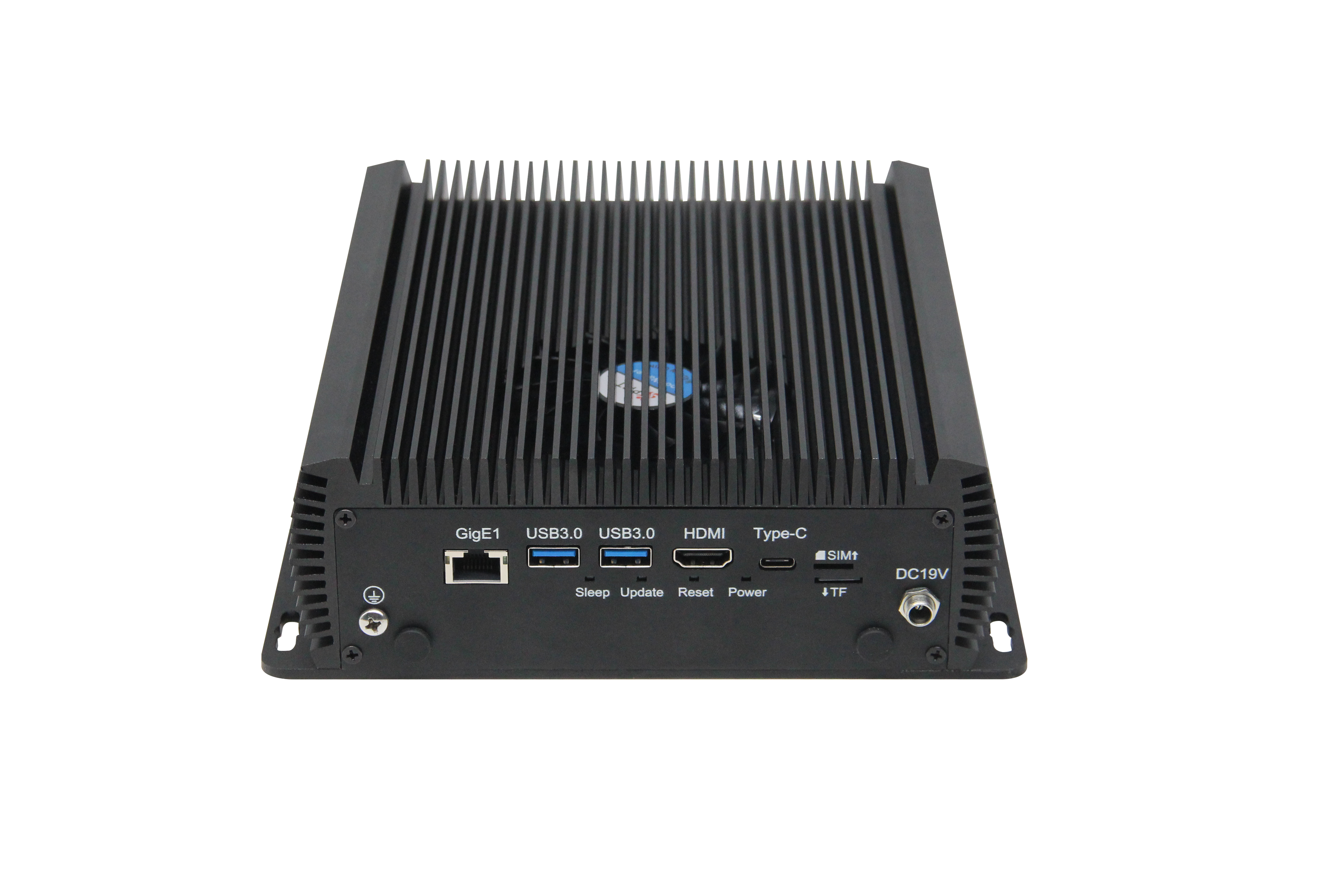

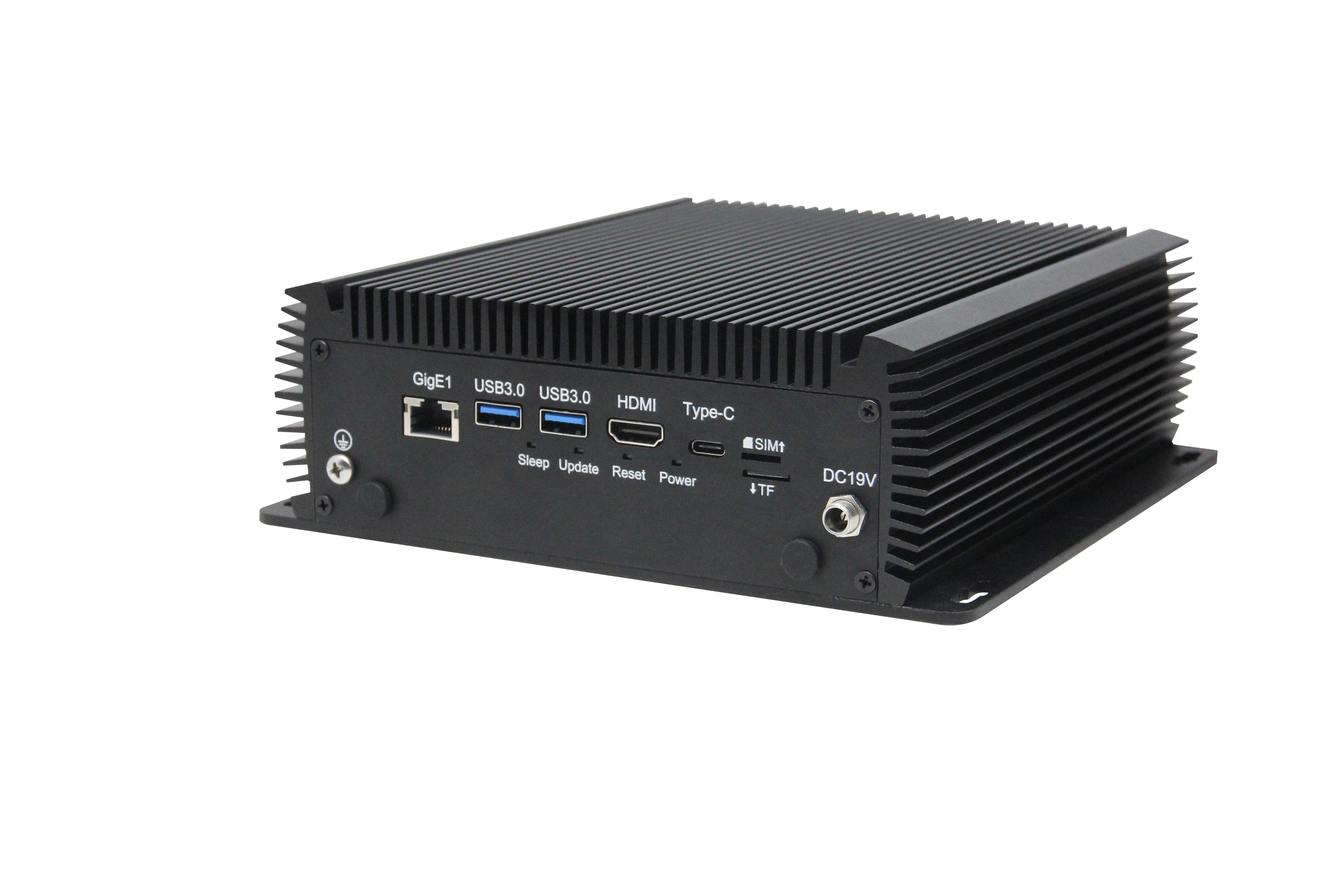

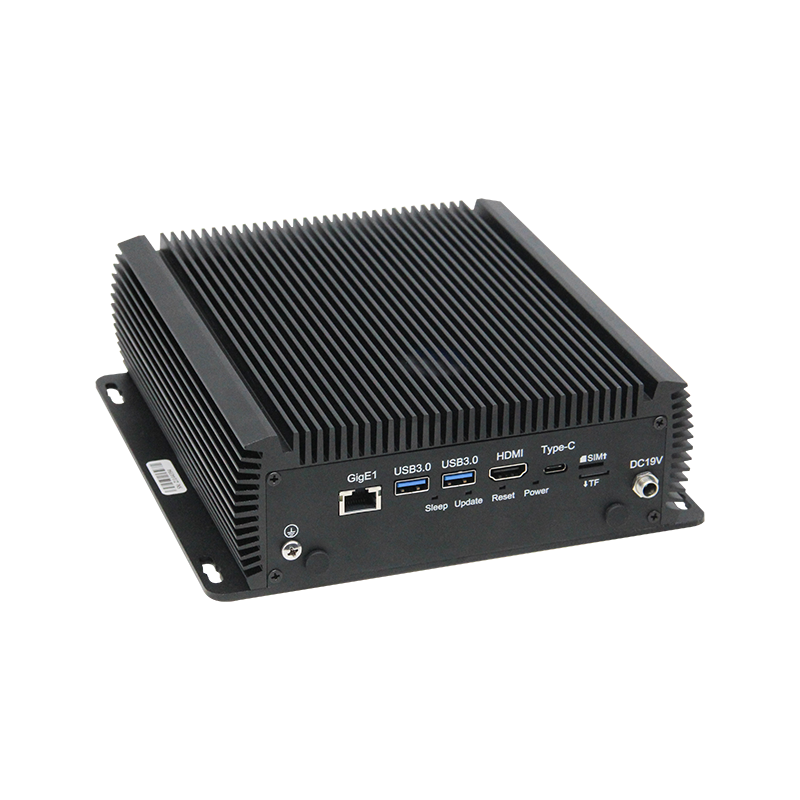

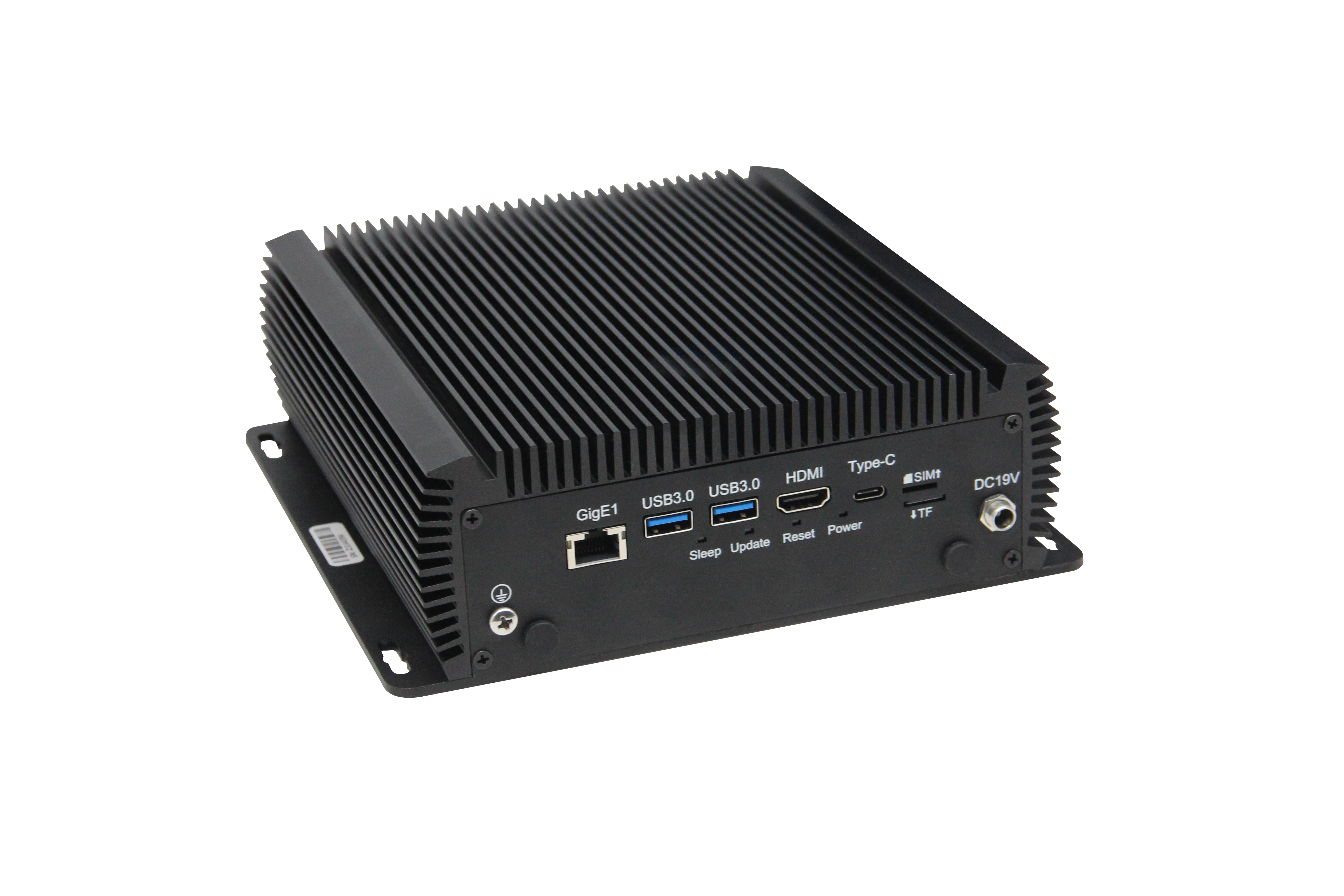

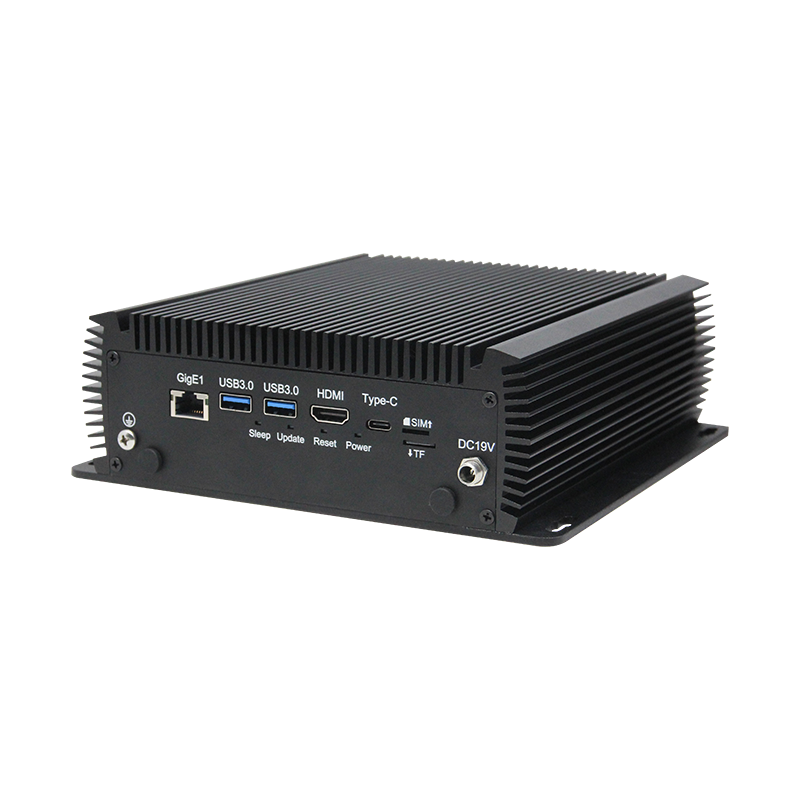

101F1E5 is an industrial-grade computing device equipped with the Ascend Atlas 200I A2 acceleration module. It offers two AI compute options of 8 TOPS or 20 TOPS, enabling AI application acceleration for tasks such as target recognition and image classification at the edge. This device can meet the real-time AI inference performance requirements of edge AI scenarios in smart parks, machine vision, security patrols, and smart retail.

The device features a robust and compact fan cooling design, with abundant I/O interfaces and key interfaces equipped with electrostatic protection capabilities, providing a solid guarantee for the long-term stable operation of edge AI scenarios in various fields.

Applications
101F1E5 101F1E5

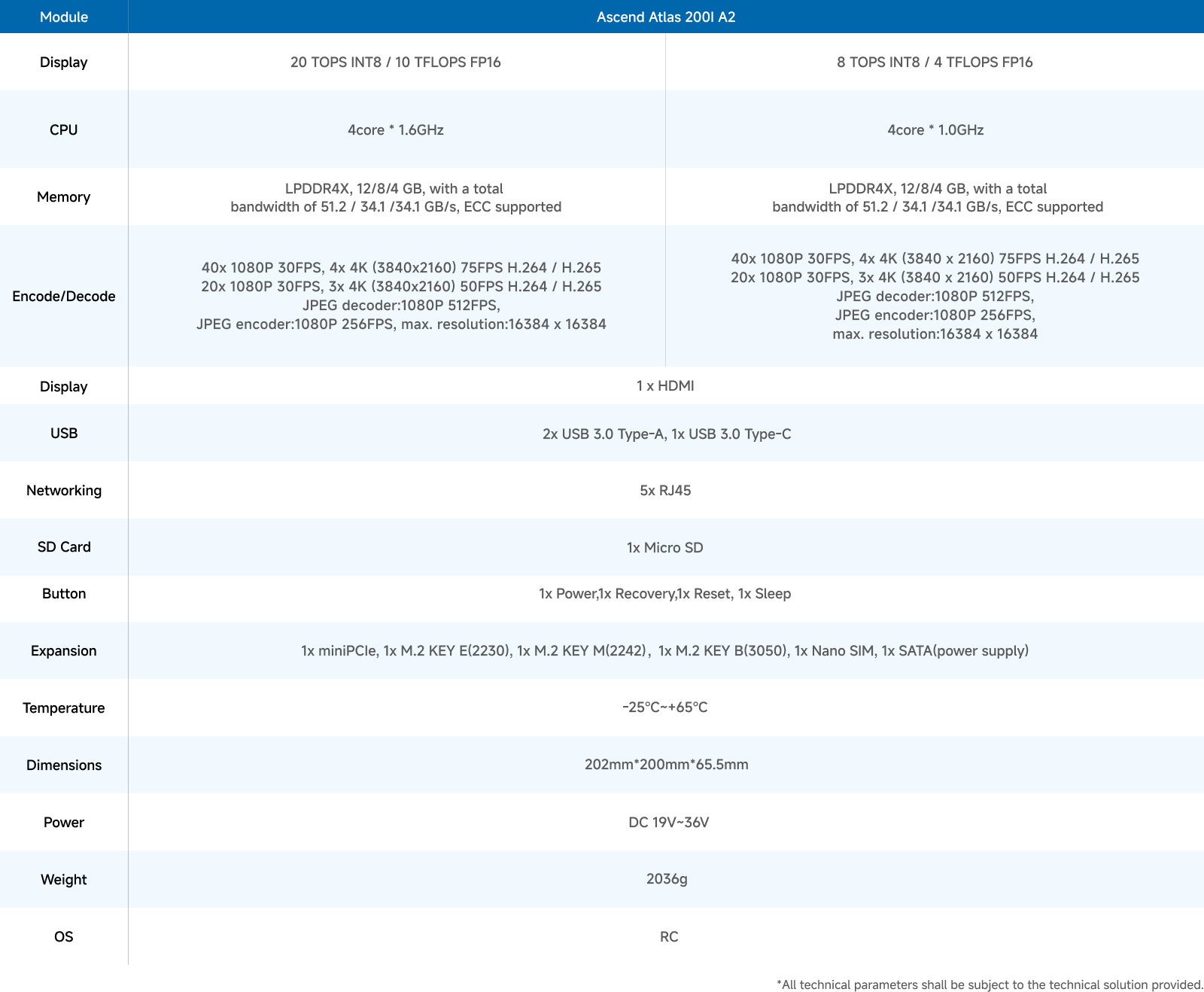

Specifications
101F1E5

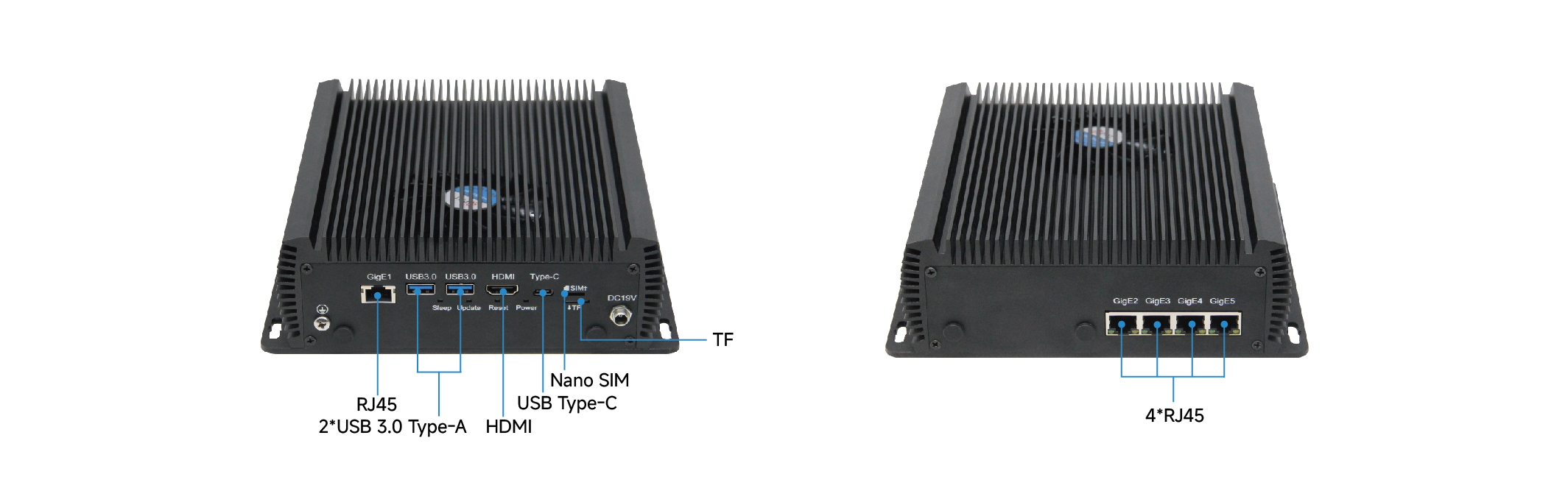

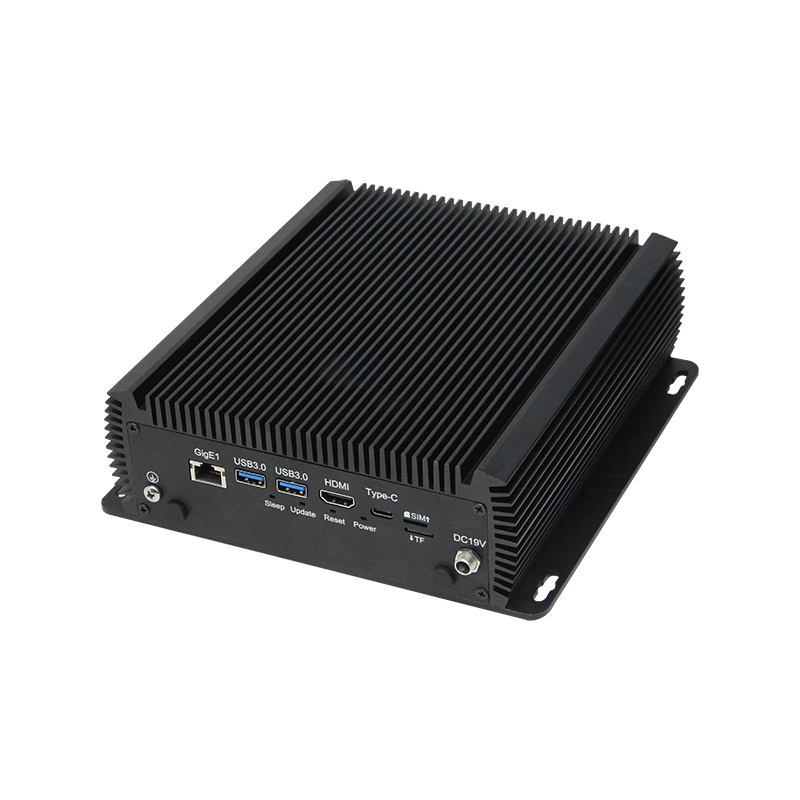

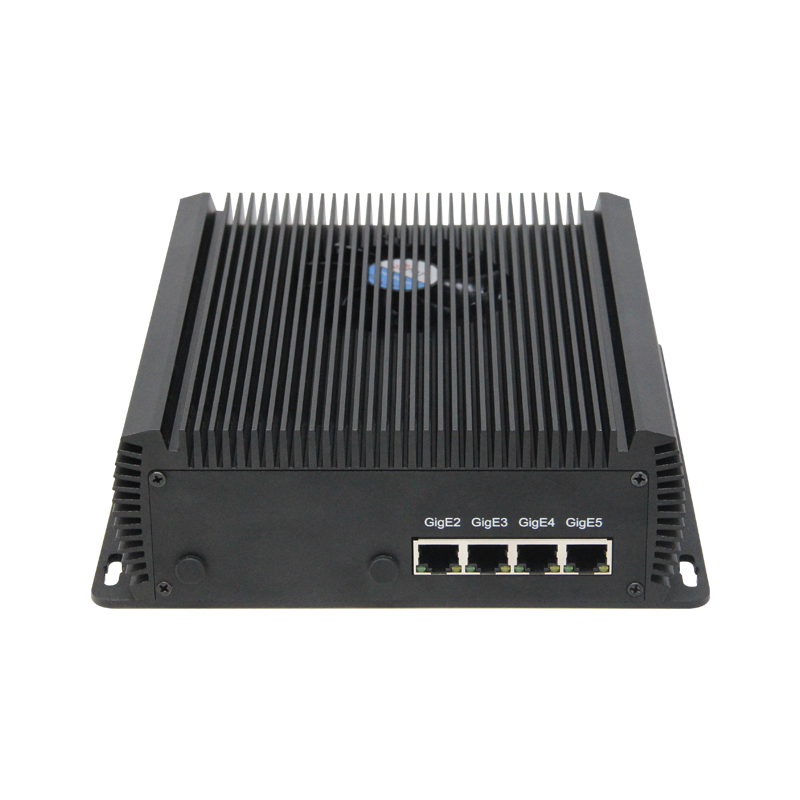

Interfaces
101F1E5

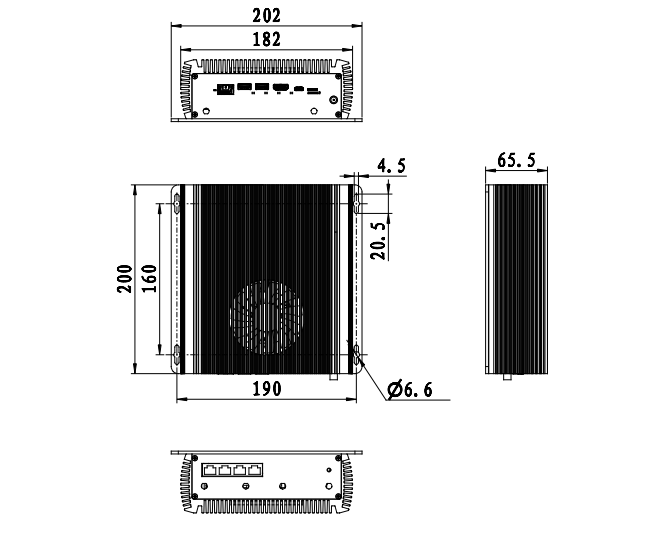

Dimensions
101F1E5
Downloads
pdf
101F1E5datasheet_EN
Size:952.68 KB 2026-05-29
stp
101F1E5
Size:24.12 MB 2026-05-29
