Y-C28

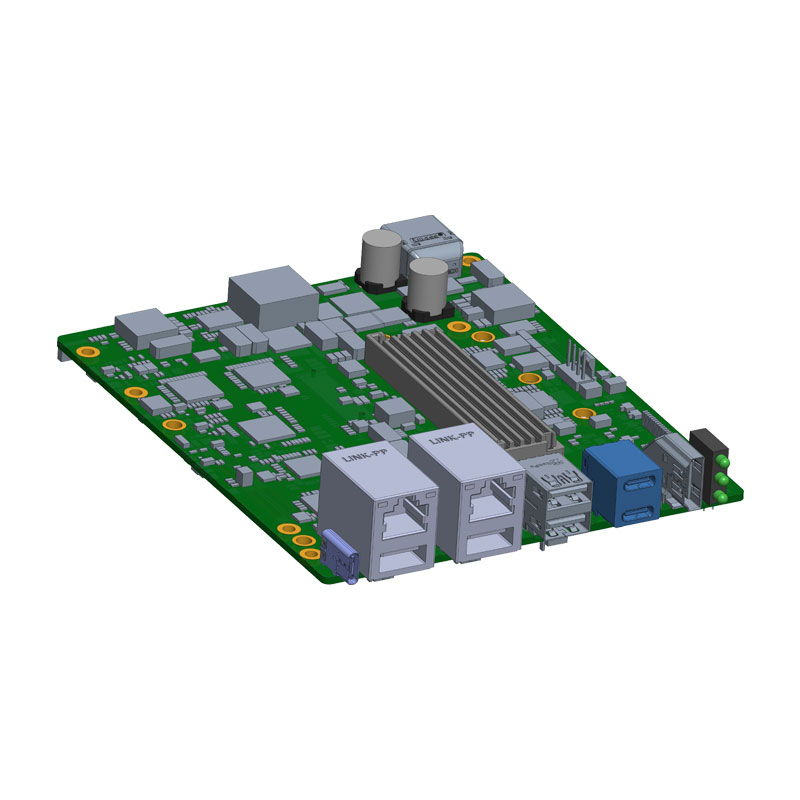

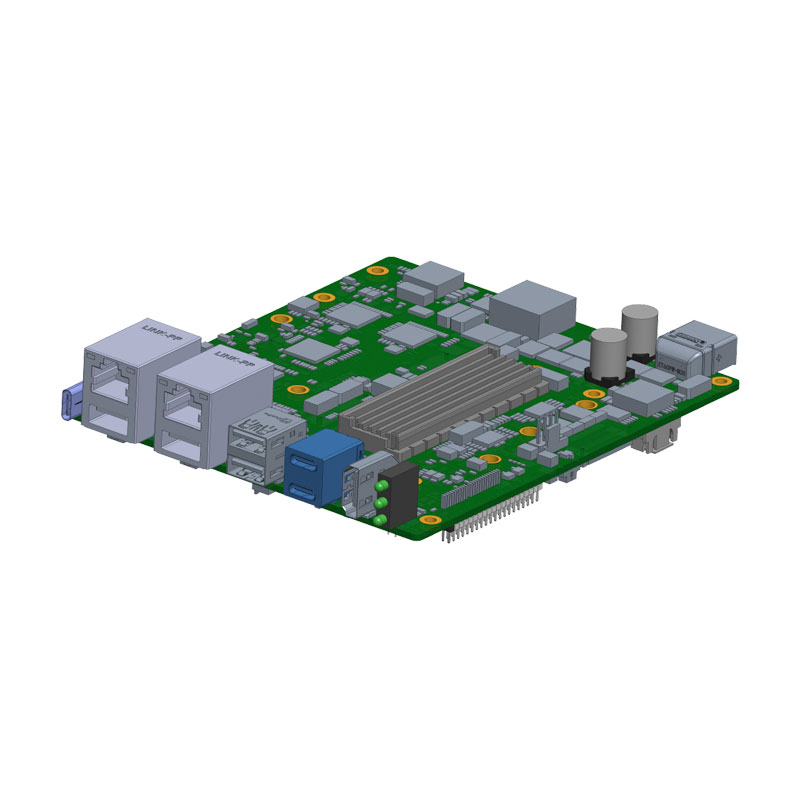

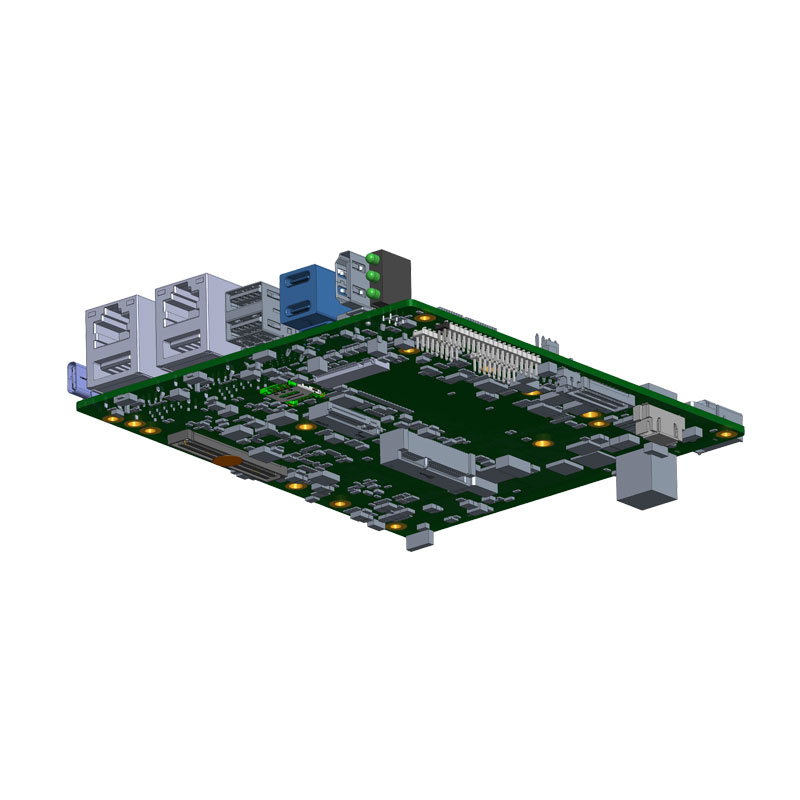

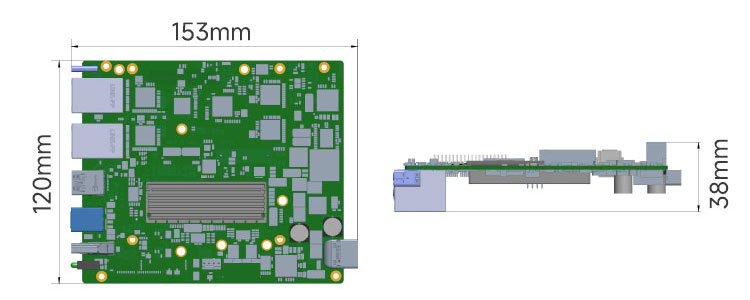

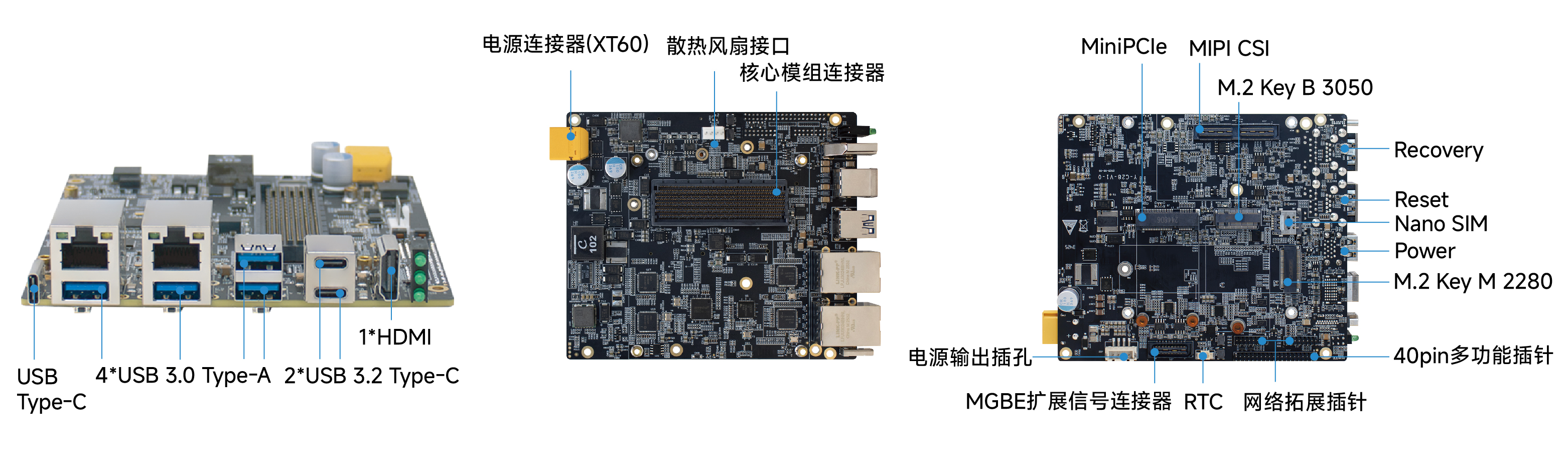

Y-C28 is an edge AI computing carrier board designed for NVIDIA® Jetson™ Thor / AGX Orin, ideal for robotics, industrial automation, autonomous driving and other demanding edge deployments. It features industrial-grade high-reliability design with ESD, over-voltage and reverse polarity protection. All components are wide-temperature rated for stable operation in harsh environments. An RTC power connector is integrated to maintain clock synchronization when main power is off.With a compact layout of 140mm×120mm×37.6mm, Y-C28 routes key interfaces to one side for easy integration. It supports 4×4/6×2 Lane MIPI CSI cameras and offers flexible expansion for multi-channel HD cameras, Gigabit Ethernet, high-capacity storage, Wi-Fi and 5G modules. Integrated SPI/GPIO/CAN/UART interfaces support secondary development and customization. A power output connector is also provided to directly supply external peripherals.
