NVIDIA Jetson 扩展载板

  • Jetson Orin NX/Orin Nano载板 Y-C17
  • Jetson Orin NX/Orin Nano载板 Y-C17
  • Jetson Orin NX/Orin Nano载板 Y-C17
Jetson Orin NX/Orin Nano载板 Y-C17Jetson Orin NX/Orin Nano载板 Y-C17Jetson Orin NX/Orin Nano载板 Y-C17

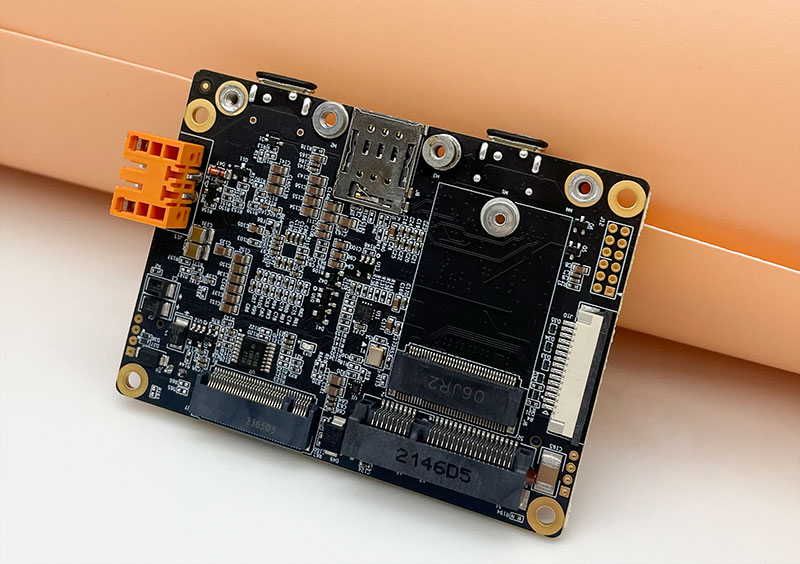

Jetson Orin NX/Orin Nano载板 Y-C17

上电自动开机
防脱落电源接线端子
板卡尺寸:85mm * 63mm * 18mm
电源输入:DC +12V ~ +24V
工作温度:-40 ~ +85°C
重量:45g


NVIDIA Jetson Xavier NX/Orin Nano/Orin NX
载板/开发板 Y-C17
产品特性

* 适配模组: NVIDIA Jetson Xavier NX/Orin Nano/Orin NX Module

* I/O interface: 2x Type-C, 1x Nano SIM, 1x MiniPCIe connector
* M.2 connector:
1x M.2 2230 M key slot
1x M.2 3050 B key slot(Expandable 4G/5G communication module)
* Camera: 1x 2 Lane MIPI camera interface FPC connector
* 规格: 85mm*63mm*18mm, 45g
* 工作温度: -20°C to 65℃

* 输入功率: DC +12V～+24V

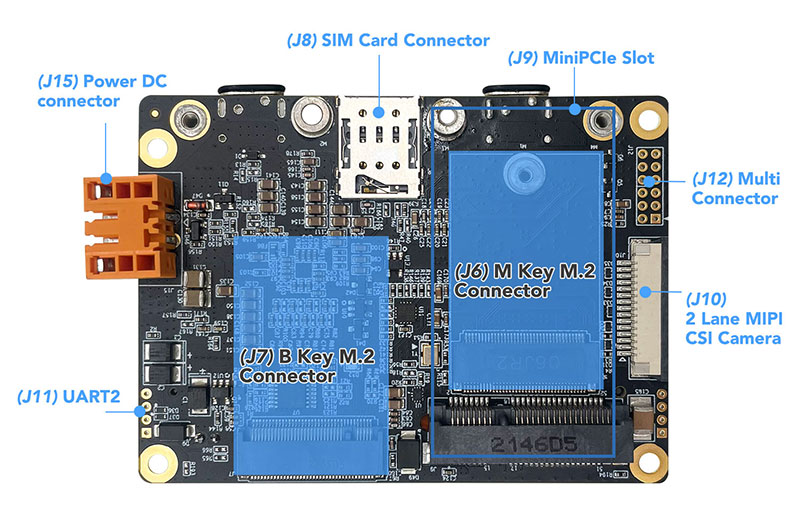

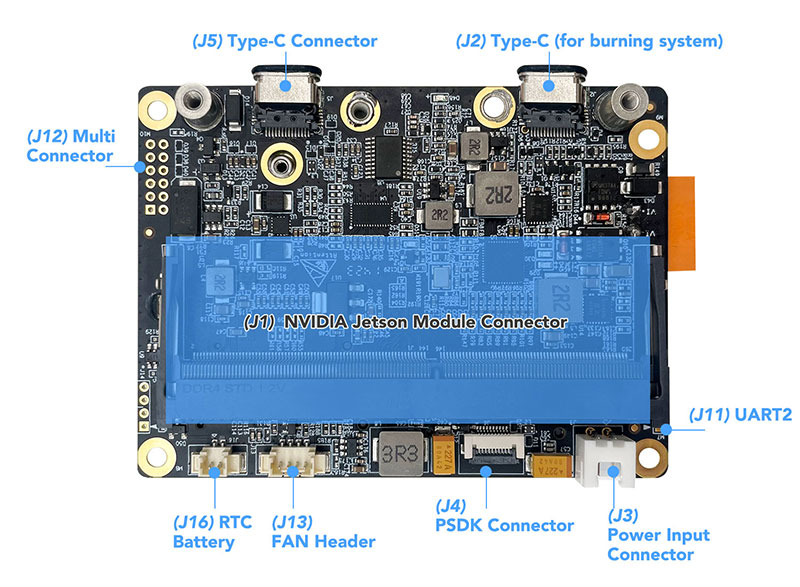

Type-C connector
2
Nano type SIM card connector
1
MiniPCIe connector
1
M.2 2230 M key slot
1
M.2 3050 B key slot(Expandable 4G/5G communication module)
1
2 Lane MIPI camera interface FPC connector
1
3.3V RTC power supply port
1
Fan control interface(5V)
1

NVIDIA Jetson Orin Nano and Orin NX 模组参数


Jetson Orin NX 16GB
 Jetson Orin NX 8GB

Jetson Orin Nano 8GB

Jetson Orin Nano 4GB

Jetson Xavier NX 16GB

Jetson Xavier NX 8GB
AI Perf
 157 TOPS
 117 TOPS
 67 TOPS
 34 TOPS
 21 TOPS

GPU

1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
 512-core NVIDIA Ampere architecture GPU with16 Tensor Cores
 384-core NVIDIA Volta™ architecture GPU with 48 Tensor Cores

CPU

8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3
 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU
6MB L2 + 4MB L3

Memory

16GB 128-bit LPDDR5
102.4GB/s
 8GB 128-bit LPDDR5
102.4GB/s
 8GB 128-bit LPDDR5
68 GB/s
 4GB 64-bit LPDDR5
34 GB/s
 16GB 128-bit LPDDR4x
59.7GB/s
 8GB 128-bit LPDDR4x
59.7GB/s

Storage

-
(Supports external NVMe)
 16GB eMMC 5.1
Video Encode
 1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
 1080p30 supported by 1-2 CPU cores
 2x 4K60 (H.265)
4x 4K30 (H.265)
10x 1080p60 (H.265)
22x 1080p30 (H.265)

Video Decode

1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
 1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
 2x 8K30 (H.265)
6x 4K60 (H.265)
12x 4K30 (H.265)
22x 1080p60 (H.265)
44x 1080p30 (H.265)

CSI Camera

Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
 Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
 Up to 6 cameras
(24 via virtual channels)
14 lanes MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)

PCIe

1 x4 + 3 x1
(PCIe Gen4, Root Port, & Endpoint)
 1 x4 + 3 x1
(PCIe Gen3, Root Port, & Endpoint)
 1 x4 (PCIe Gen4) + 1 x1 (PCIe Gen3)

USB

3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0
 3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0
 1x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0

Power

10W - 25W
 10W - 20W
 7W - 15W
 7W - 10W
 10W - 20W
Mechanical 69.6mm x 45mm
260-pin SO-DIMM connector
