专业图形显卡

NVIDIA RTX 6000 Ada Generation

Ada Lovelace GPU architecture
18,176 CUDA Cores
568 Tensor Cores
142 RT Cores
48GB GDDR6 Memory with ECC
Memory Bandwidth: 960 GB/s

NVIDIA Ada Lovelace Architecture

NVIDIA RTX™ 6000 Ada Generation is the most powerful workstation GPU offering high-performance, real-time ray tracing, AI-accelerated compute, and professional graphics rendering. Building upon the major SM enhancements from the Ada Lovelace GPU, the NVIDIA Ada Lovelace architecture provides more cores, higher clocks, and a larger L2 cache for more performance to enhance ray tracing operations, tensor matrix operations, and frame rates with DLSS 3.0

GPU Architecture	NVIDIA Ada Lovelace Architecture
CUDA Cores	18,176
Tensor Cores	568
RT Cores	142
Single-Precision Performance¹	91.1 TFLOPS
RT Core Performance1	210.6 TFLOPS
Tensor Performance¹	1457.0 TFLOPS2
GPU Memory	48 GB GDDR6 with ECC
Memory Interface	384-bit
Memory Bandwidth	960 GB/s
Max Power Consumption	300W
Thermal Solution	Blower Active Fan
Graphics Bus	PCI 4.0 x16
Display Connectors	DP 1.4 (4)³
Form Factor	4.4” H x 10.5” L Dual Slot
Product Weight	1.180 kg

¹Peak rates are based on GPU boost clock.
²Effective FP8 TFLOPS using the new sparsity feature.
³Display ports are on by default for the RTX 6000 Ada Generation. Display ports are not active when using vGPU software. Virtualization support for the RTX 6000 Ada Generation will be available in an upcoming NVIDIA virtual GPU (vGPU) release, anticipated in Q1, 2023.

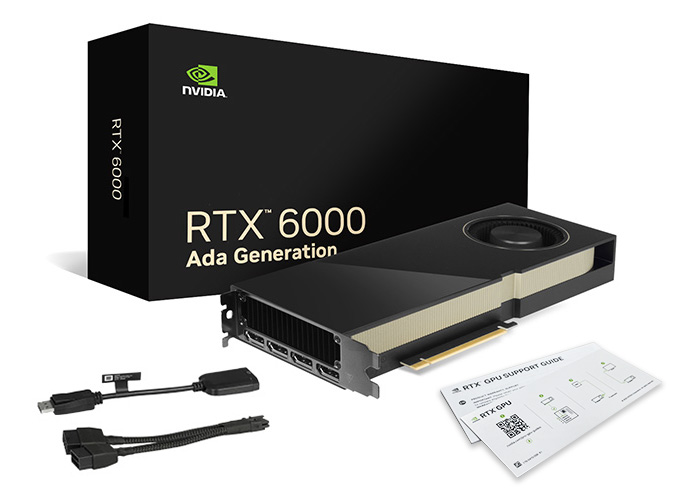

NVIDIA Packaging and Accessories

NVIDIA RTX 6000 Ada Generation
NVIDIA RTX Quick Start Guide
NVIDIA Support Guide
1 DisplayPort to HDMI Adapter
PCIe Gen5 Power Connector Adapter
