昇腾系列整机

昇腾Atlas系列工控机200I-DEV

4 GB LPDDR4X, 支持ECC
8 TOPS INT8

200I-DEV是基于昇腾系列Atlas 200I DK A2开发者套件设计的一款嵌入式工控机，可以在边端侧实现目标识别、图像分类等AI应用加速

	Specification
AI Computing Power	8 TOPS INT8 4 TFLOPS FP16
Memory	4 GB LPDDR4X, ECC supported
CPU Computing Power	4 x 1.0 GHz cores
Encoding/Decoding	H.264/H.265 hardware decoding: 20- channel 1080p 30 FPS, 2-channel 4K 75 FPS JPEG decoding: 1080p 512 FPS; encoding: 1080p 256 FPS; Max. resolution: 16384 x 16384
Extended Interfaces	2 x MIPI-CSI 51-pin connectors for camera modules 1 x MIPI-DSI 51-pin connectors 2 x RJ45 network ports, 100/1000 Mbit/s auto-sensing 2 x HDMI 2 x USB 3.0 Type-A, compatible with USB 2.0 1 x USB 3.0 Type-C One group of 40-pin extended connectors
Storage Interface	1 x Micro SD 1 x M.2 Key connector, with 1x NVMe SSD supported
Power Supply	24W

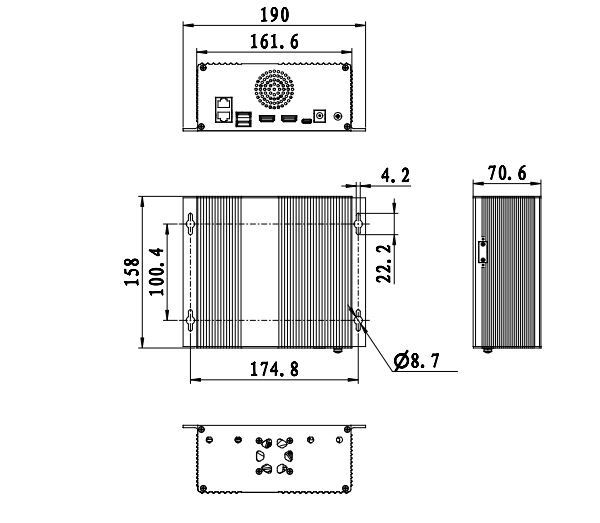

Dimensions	190 mm* 158mm* 71 mm
Weight	881g
