NVIDIA Jetson 整机

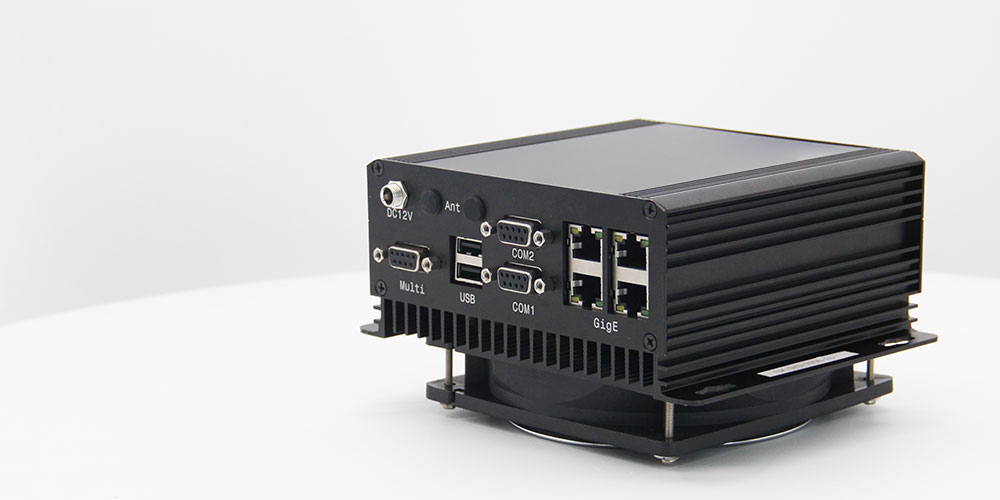

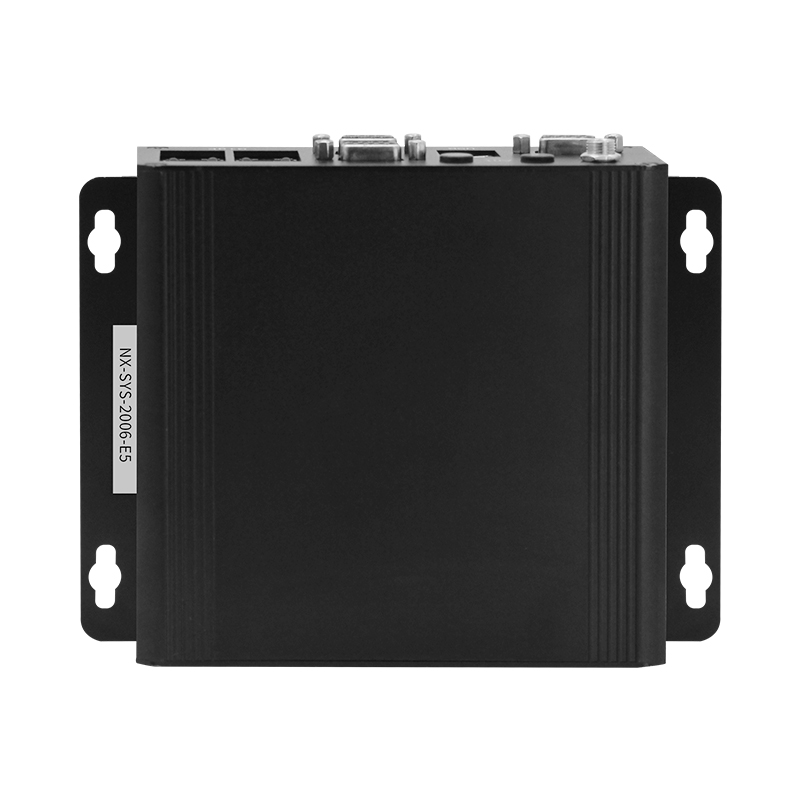

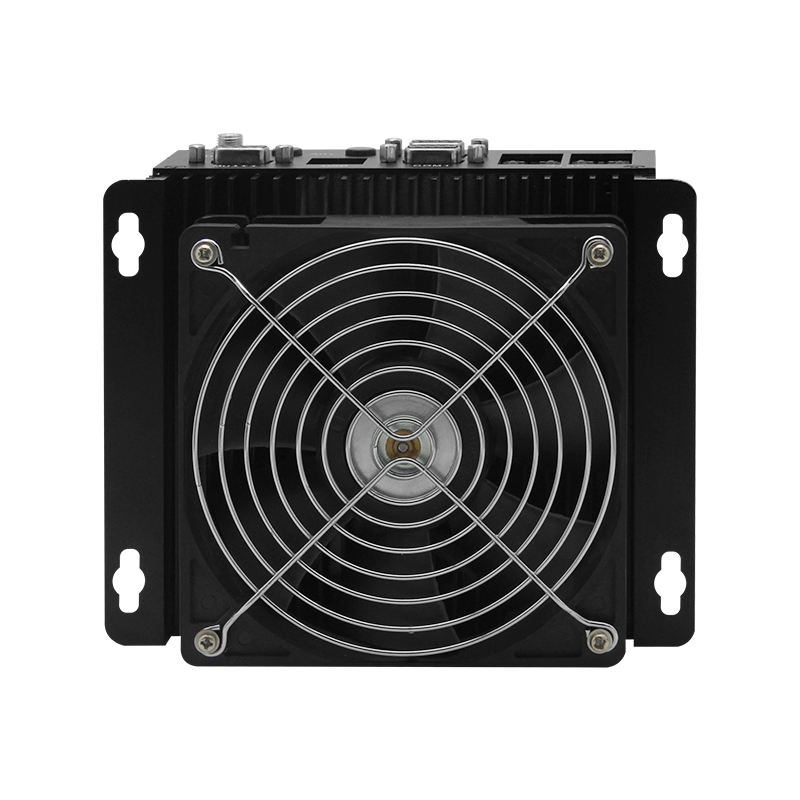

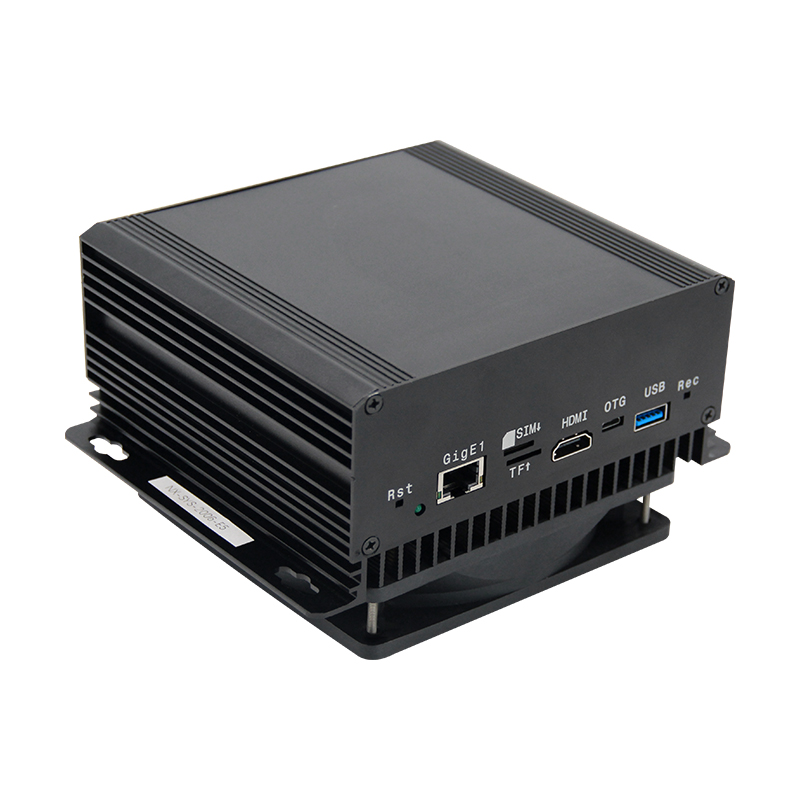

Jetson TX2 NX工控机 SYS-2006

NVIDIA Jetson TX2 NX，在15W功耗模式下可提供1.33 TFLOPS 算力，是Jetson Nano算力的2.5倍
带有256 个 CUDA Cores
6个ARM CPU核心
4 GB 128-bit DDR4内存

* 适配模组:

NVIDIA Jetson Nano/TX2NX Module
* 通用接口:
1x RJ45, 2x USB 3.0, 1x USB 2.0, 1x HDMI and 1x USB Micro B
* 外设支持:

1x TF slot, 1x Nano SIM, 2 RS232, 3x GPIO, 1x GPO
* Input Power: DC +9V~+24V

* 可扩展:

4G communication module, WIFI/Bluetooth module, Video capture/output module, Multi I/O module.

Product Name	TX2NX-SYS-2006
Jetson Module Supported	NVIDIA Jetson TX2 NX
AI Processor	1.33 TFLOPS
GPU	256-core NVIDIA Pascal™ architecture GPU
CPU	Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor
Memory	8GB 128-bit LPDDR4x 59.7GB/s
Storage	16GB eMMC 5.1
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 4x 1080p60 (H.265)
Video Decode	2x 4K60 (H.265) 7x 1080p60 (H.265) 14x 1080p30 (H.265)
CSI Camera	Up to 5 cameras (12 via virtual channels)12 lanes MIPI CSI-2D-PHY 1.1 (up to 30 Gbps)
Networking	1x Gigabit Ethernet(10/100/1000 BAST-T) RJ45
USB	2x USB 3.0 Type-A 1x USB 2.0 1x Micro USB
Display	1x HDMI
Other I/O	1x Micro TF，1x Nano SIM，2x RS232，3x GPIO，1x GPO
Mechanical	160mm x 133mm x 90mm
Weight	1078g
Operating Temperature	-20℃~+65℃
Power	DC +9V～+24V
