NVIDIA Jetson 整机

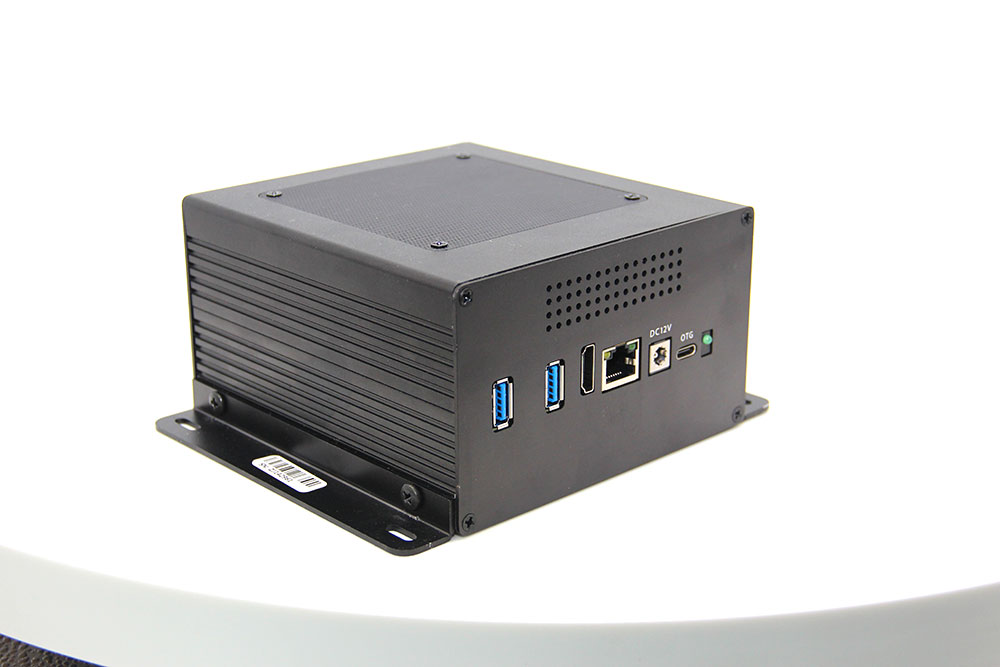

Jetson AGX Xavier 工控机 AGX32-9F1E1

电源要求：DC +12V
工作温度： -20~+65℃
重量：1061g

NVIDIA Jetson AGX Xavier Series

嵌入式工控机 9F1E1

* 适配模组:

NVIDIA Jetson AGX Xavier/AGX Xavier Industrial Module

* 通用接口:

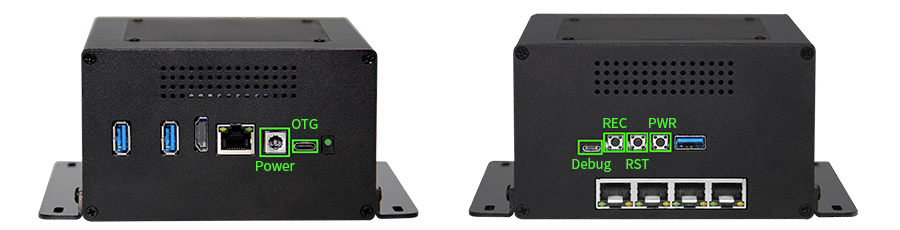

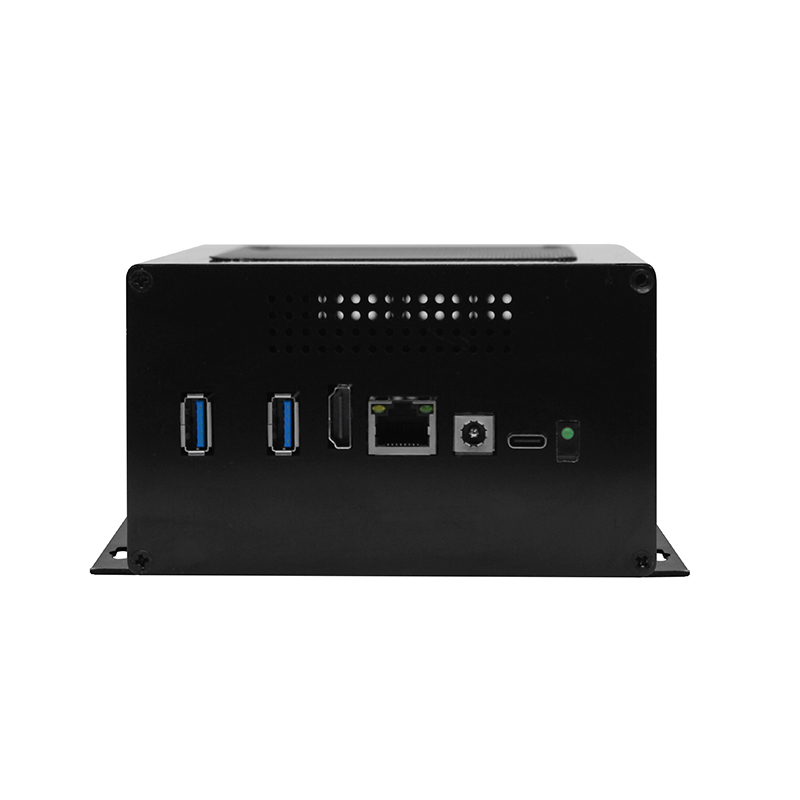

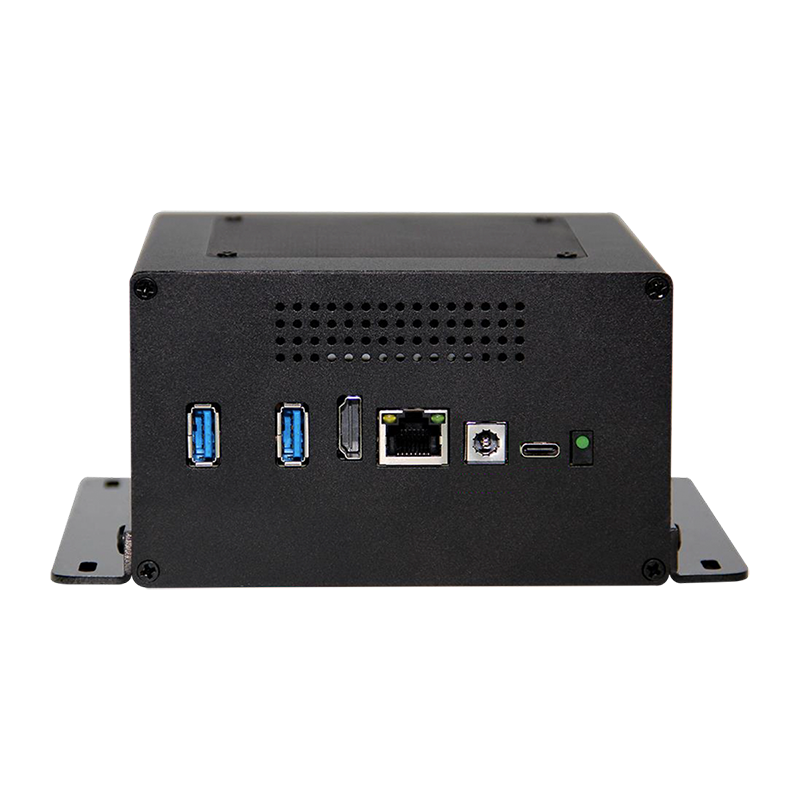

1x RJ45, 3x USB Type-A, 1x Micro B, 1x HDMI and 1x USB Type-C

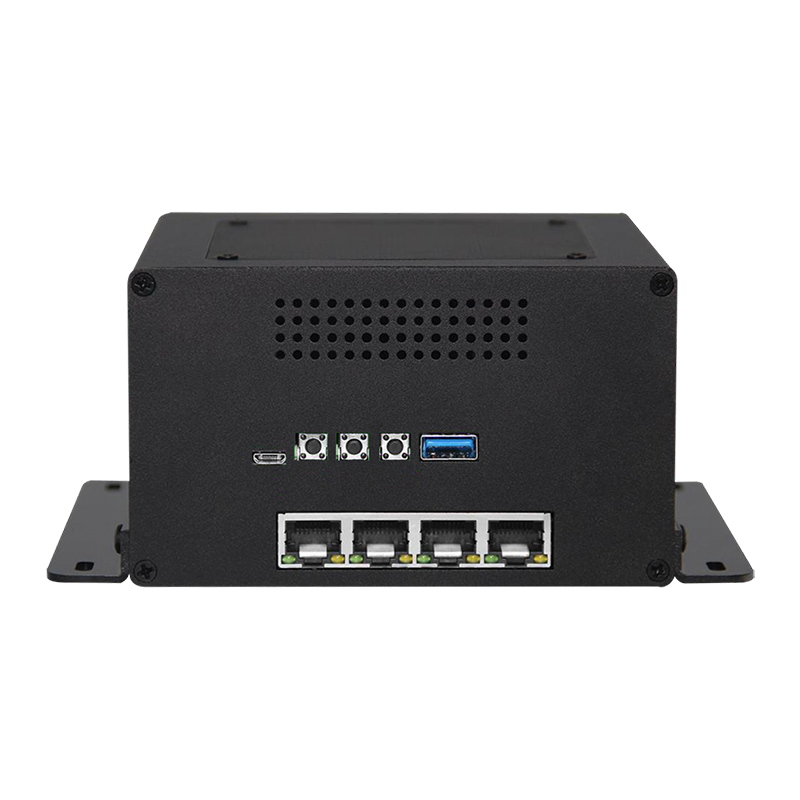

* 外设接口: 1x OTG, 1x Power, 1x REC and 1x RST

* Input Power: DC +12V

Product Name	9F1E1
Jetson Module Supported	NVIDIA Jetson AGX Xavier/AGX Xavier Industrial
Networking	1x Gigabit Ethernet (10/100/1000 BAST-T) RJ45
USB	3x USB 1x Micro-B
Display	1x HDMI
FAN	1x FAN（12V PWM）

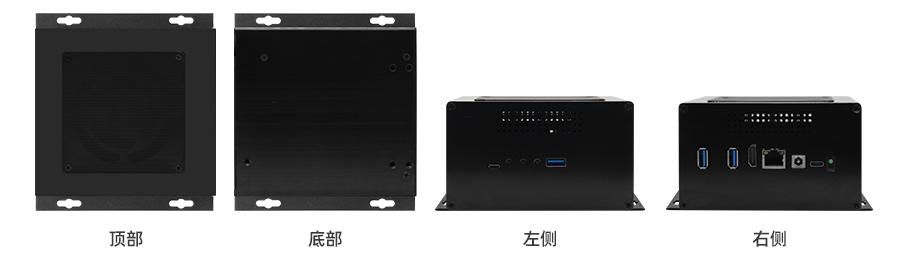

Mechanical	167mm×132mm×75mm
Weight	1061g
Operating Temperature	-20℃~+65℃

	Jetson AGX Xavier Industrial	Jetson AGX Xavier 32GB
AI Performance	30 TOPS	32 TOPS
GPU	512-core NVIDIA Volta architecture GPU with 64 Tensor Cores
CPU	8-core NVIDIA Carmel Arm®v8.2 64-bit CPU 8MB L2 + 4MB L3
Memory	32GB 256-bit LPDDR4x (ECC support) 136.5GB/s	32GB 256-bit LPDDR4x 136.5GB/s
Storage	64GB eMMC 5.1	32GB eMMC 5.1
Video Encode	2x 4K60 (H.265) 6x 4K30 (H.265) 12x 1080p60 (H.265) 24x 1080p30 (H.265)	4x 4K60 (H.265) 8x 4K30 (H.265) 16x 1080p60 (H.265) 32x 1080p30 (H.265)
Video Decode	2x 8K30 (H.265) 4x 4K60 (H.265) 8x 4K30 (H.265) 18x 1080p60 (H.265) 36x 1080p30 (H.265)	2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 26x 1080p60 (H.265) 52x 1080p30 (H.265)
CSI Camera	Up to 6 cameras (36 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 1.2 (up to 40 Gbps) C-PHY 1.1 (up to 62 Gbps)	Up to 6 cameras (36 via virtual channels) 16 lanes MIPI CSI-2 \| 8 lanes SLVS-EC D-PHY 1.2 (up to 40 Gbps) C-PHY 1.1 (up to 62 Gbps)
PCIe*	1 x8 + 1 x4 + 1 x2 + 2 x1 (PCIe Gen4, Root Port & Endpoint)
USB*	3x USB 3.2 Gen2 (10 Gbps) 4x USB 2.0
Display	3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
Other I/O	5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC, GPIOs
Power	20W - 40W	10W - 30W
